Deco X20 & X60 & W3600 V1 & V2 User Guide

Dashboard

After you successfully set up your Deco network, you will see the dashboard of the Deco app. Here you can get an overview of the network status, create HomeCare™ services, and set up various advanced features.

Note: To use HomeCare services, upgrade your Deco to the latest version.

Tap to enter OVERVIEW

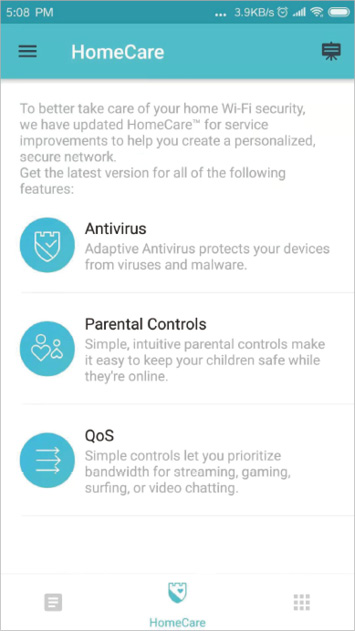

Tap to enter HomeCare

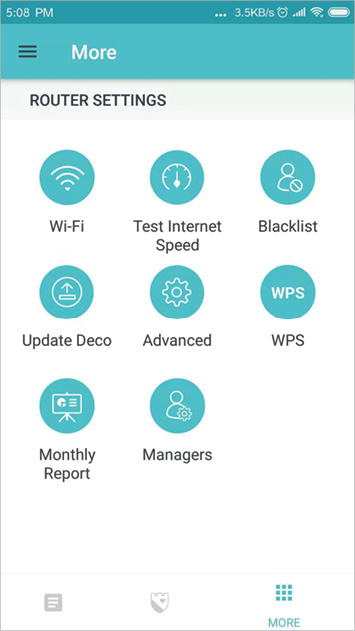

Tap to set up more features

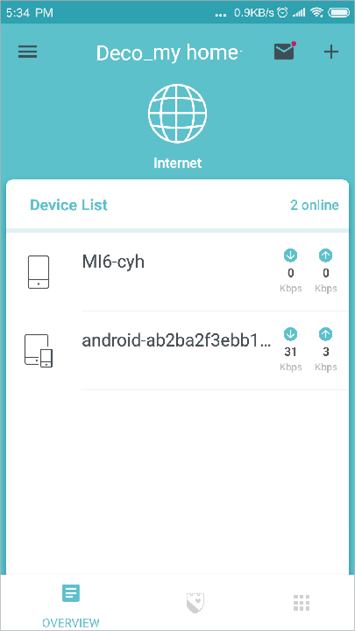

Overview

In Overview, you can check the working status of all the Decos, manage the connected devices, add smart devices, use friends of Deco, and more.

Tap to view all connected clients

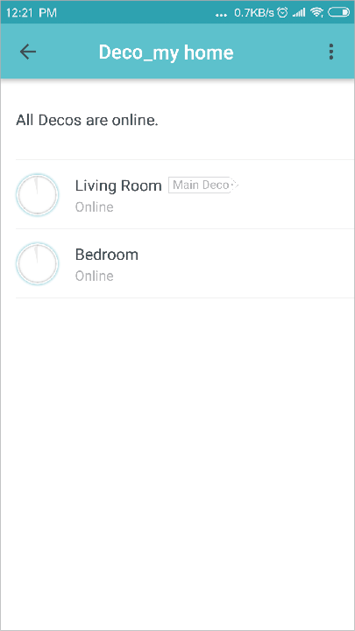

Tap to check all Deco status

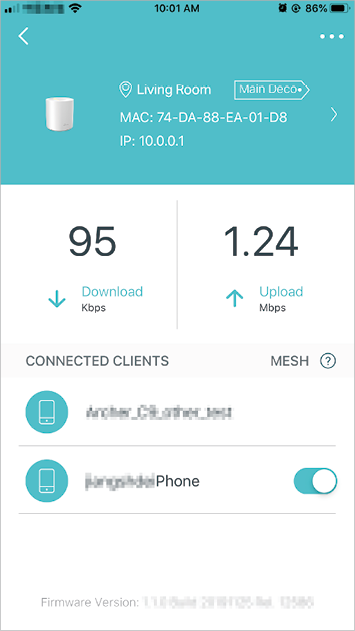

Select a Deco to view the details

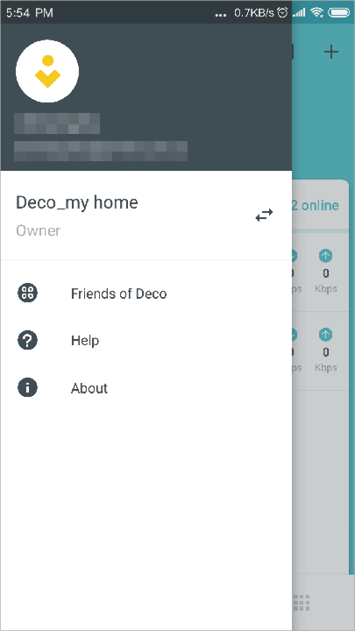

Swipe right to open the menu

Tap to add more devices

Wi-Fi Settings

You can change the network name and password of your main network, create a separate network for guests, and shake your device to share the network details easily with family and friends.

Tap > Wi-Fi

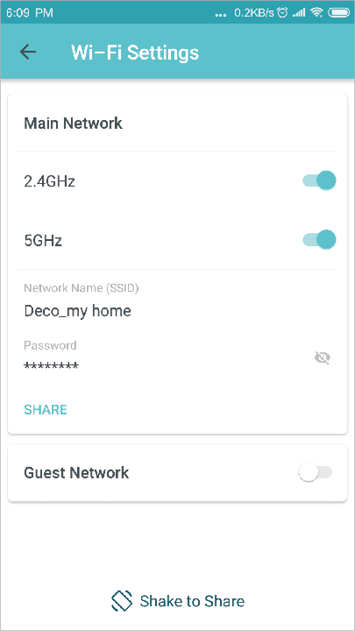

Manage main Wi-Fi network

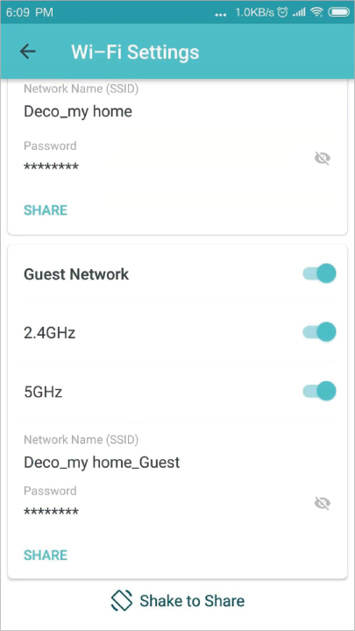

Enable guest network

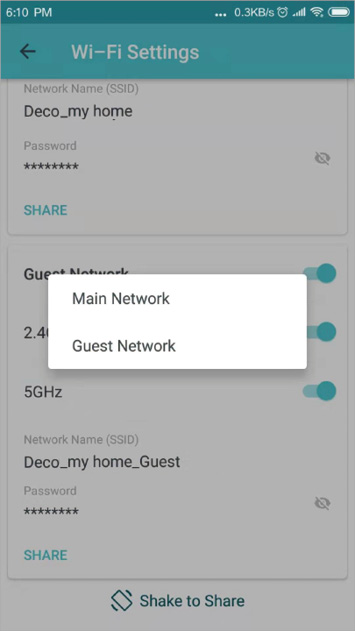

Shake to share your network

Blacklist

Compile a blacklist to avoid devices added on the blacklist to access to your network, ensuring the safety of your personal information shared in the network.

Tap > Blacklist

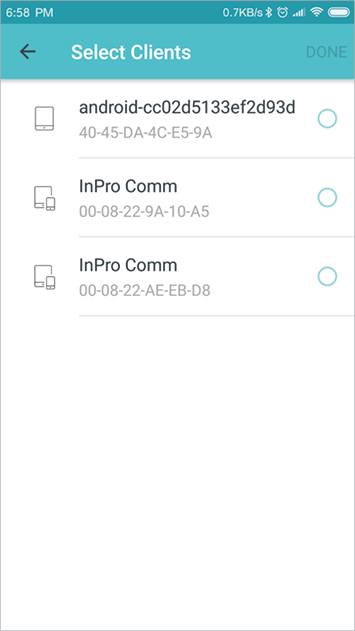

Add clients to blacklist

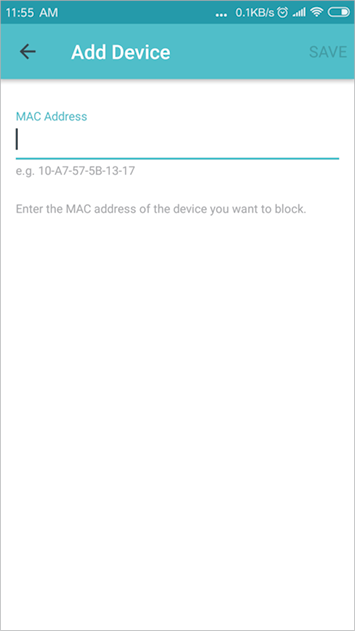

Add other devices to blacklist

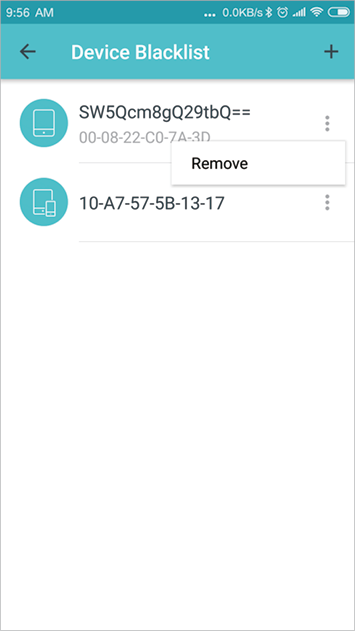

Manage blacklist

Online Update

Deco is dedicated to improving product features and providing a better customer experience. An up-to-date firmware provides better and more stable network performance. Always update your Deco to the latest firmware version when prompted in the Deco app.

Tap > Update Deco

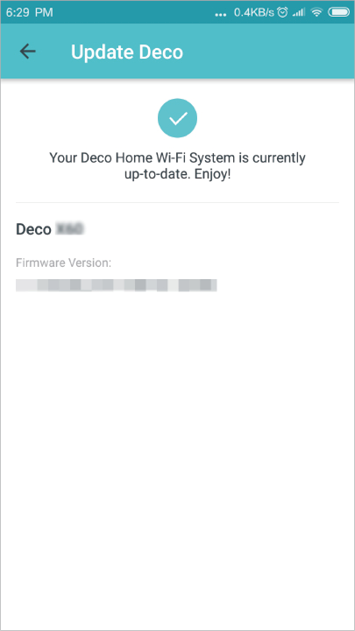

Update your Deco to the latest version

Tip: If the firmware update fails, please reboot the main Deco, move the Satellite Deco closer to the main Deco, then try to update again.

Advanced Features

Additional features are available under the Advanced menu. You can modify WAN settings (IPv4 & IPv6), add IPv6 firewall rules, modify LAN IP, set up DHCP server, enable VLAN/IPTV/MAC Clone mode, reserve the same IP address for a specific device, set up port forwarding rules to make your local computers accessible to other devices over the internet, enable TP-Link DDNS, SIP ALG, fast roaming and beamforming, control Deco's LED, change the working mode, and configure the notification settings.

Tap > Advanced

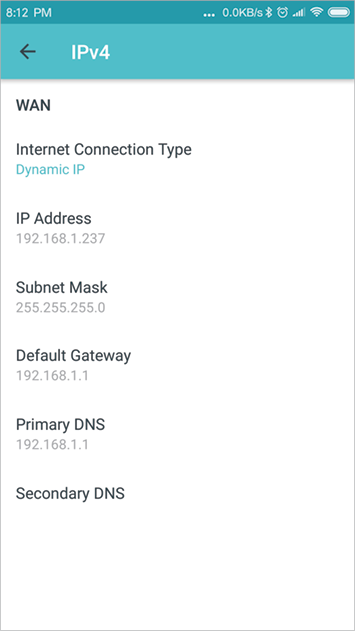

View IPv4 details

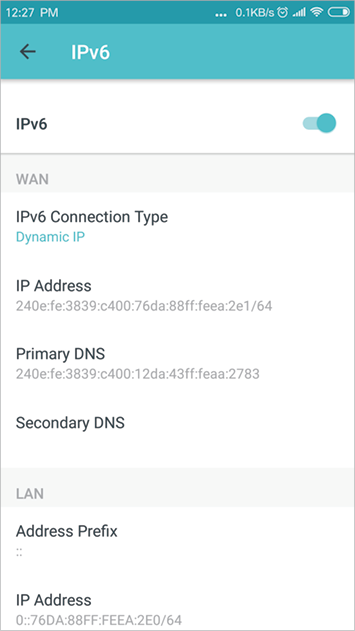

Enable IPv6

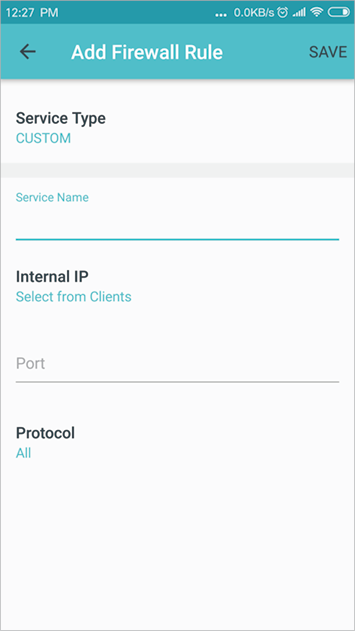

Add IPv6 firewall rules

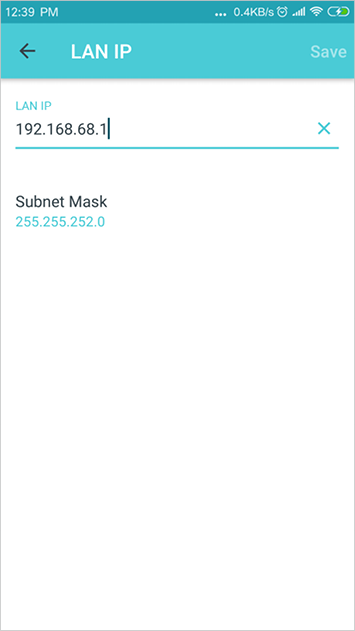

Modify LAN IP

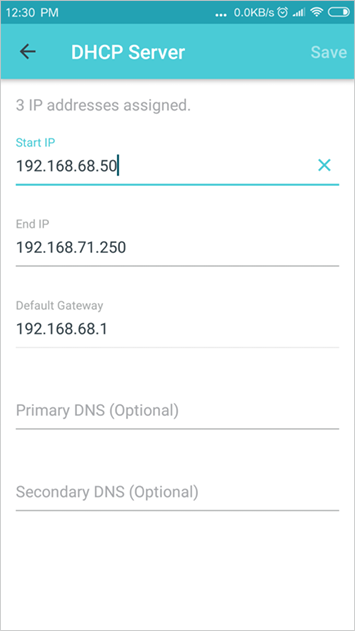

Set DHCP server

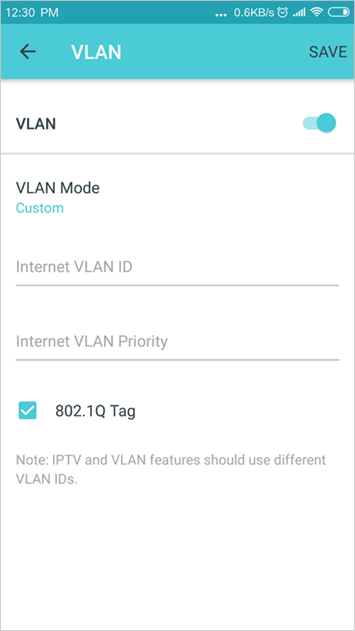

Enable VLAN mode

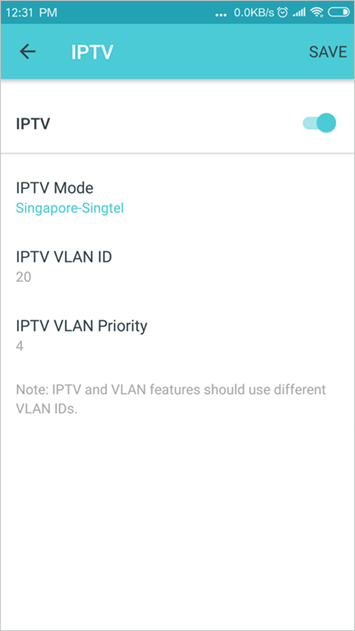

Enable IPTV mode

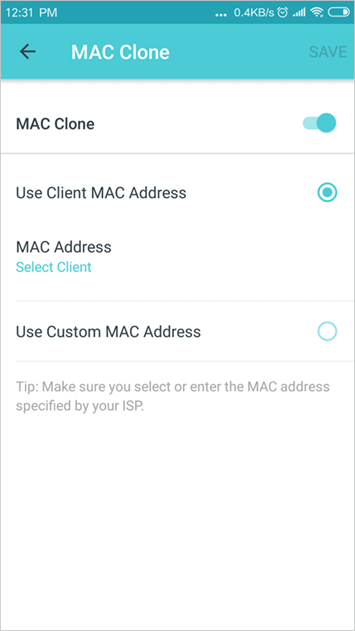

Enable MAC Clone

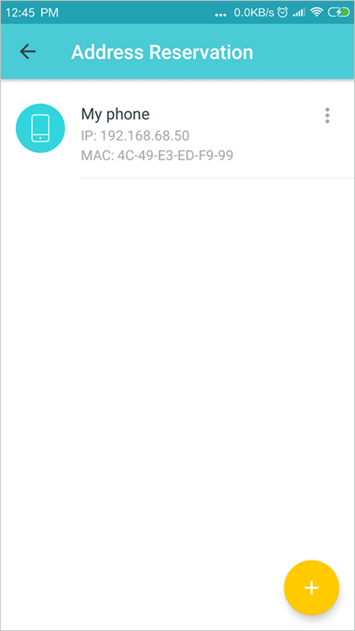

Reserve IP addresses for specific

devices

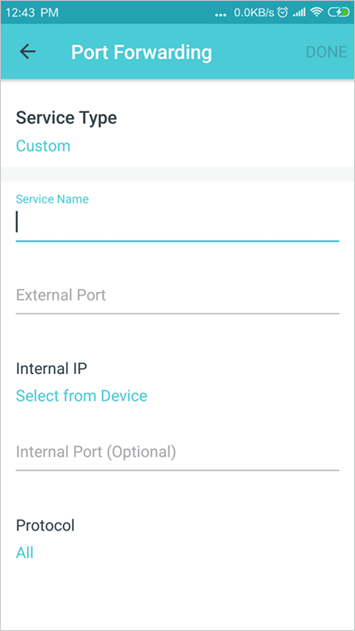

Set up port forwarding rules

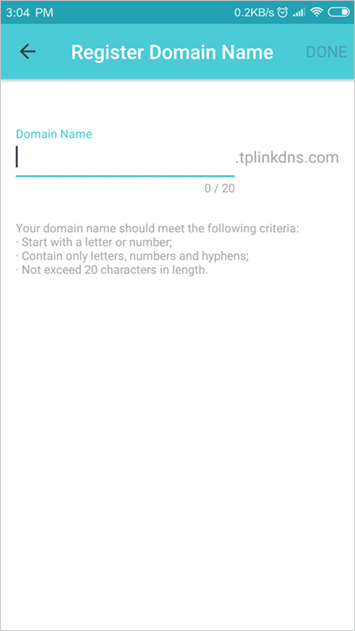

Register a TP-Link DDNS domain

name

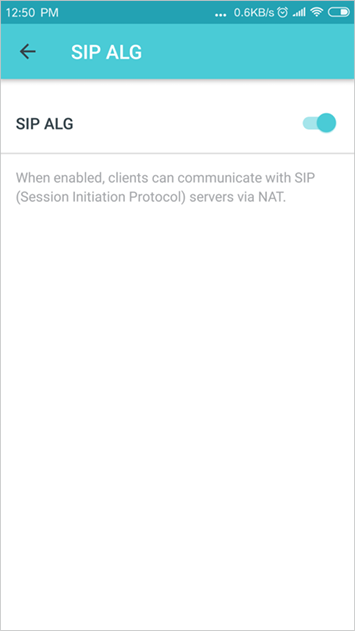

Enable SIP ALG

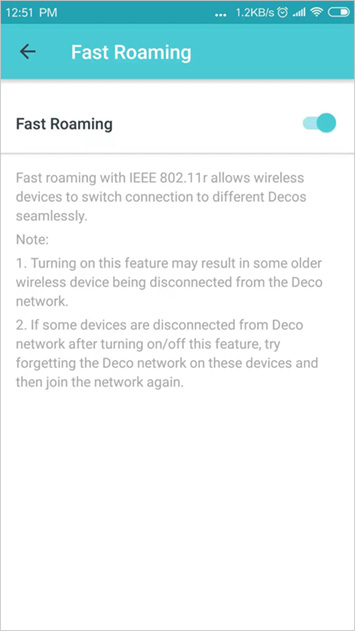

Enable Fast Roaming

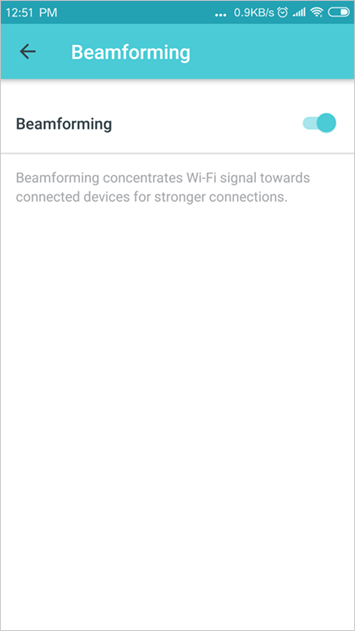

Enable Beamforming

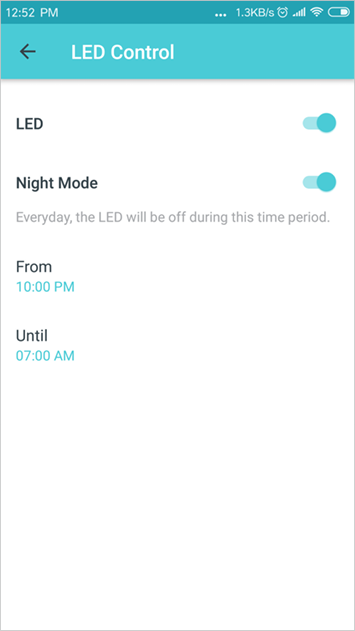

Enable LED controls

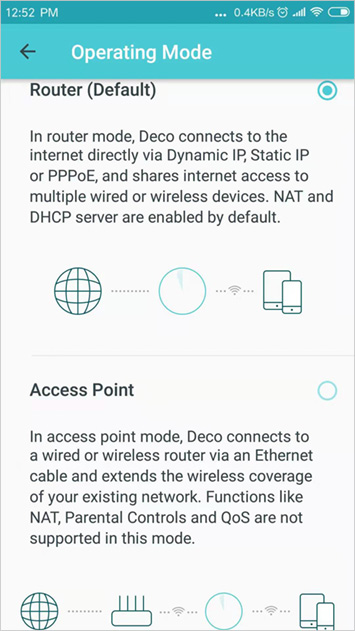

Change the operating mode

Note: When the Deco works in Access Point mode, advanced features such as Parental Controls, QoS, IPv4, Address Reservation, Port Forwarding, and DHCP server are not available.

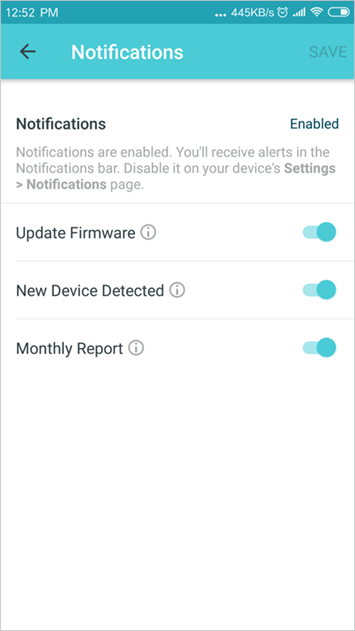

Set notifications

Note: If the Notifications option shows “Disabled”, go to Settings > Notifications on your mobile device to enable it.

WPS

WPS (Wi-Fi Protected Setup) helps you to quickly and securely connect a client to a network with a tap without entering any password.

Tap > WPS

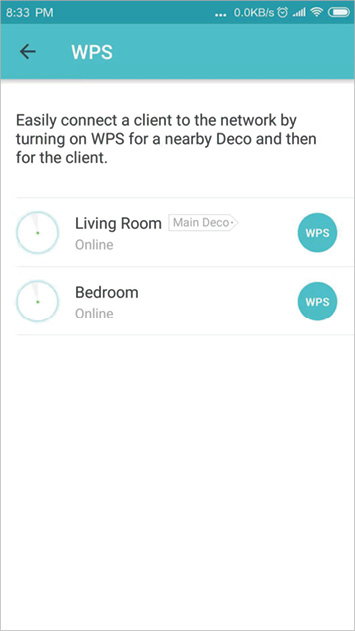

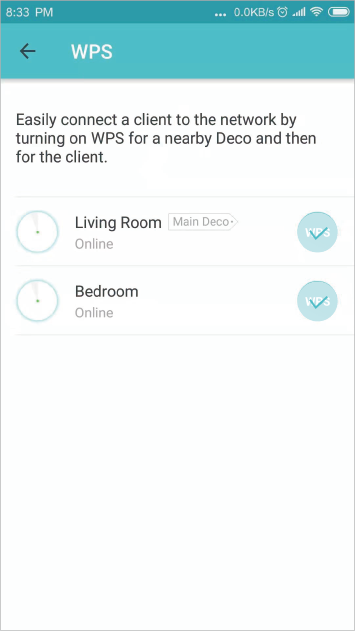

Tap the WPS icon on Deco app and then on

the client

Successfully connected to the network

Monthly Report

Review the monthly usage statistics, such as security threats and total connected network devices each day.

Tap > Monthly Report

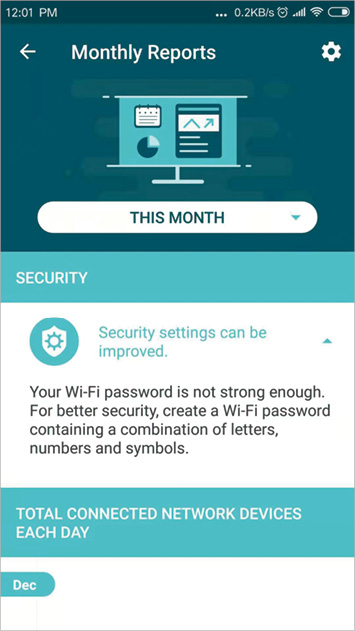

View monthly reports

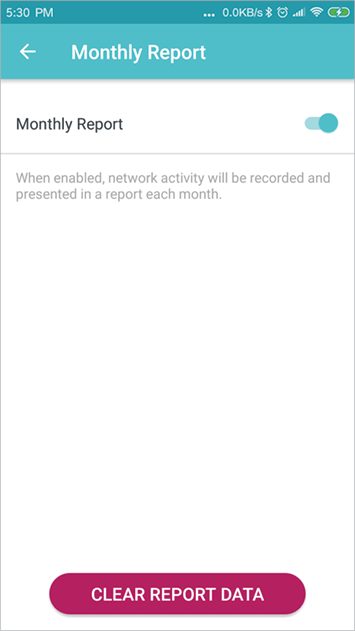

Enable or disable monthly report

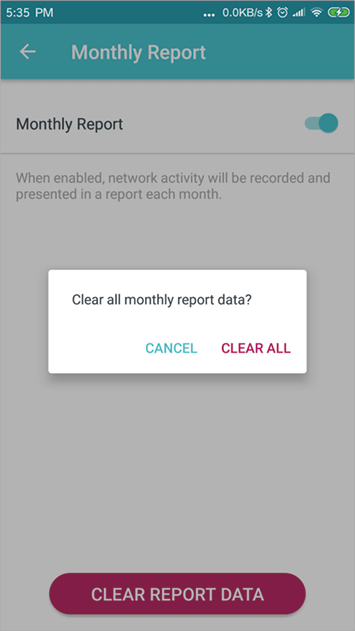

Clear monthly report data

Managers

Add friends and family members to help manage your network. Each manager should have their own TP-Link ID.

Tap > Managers

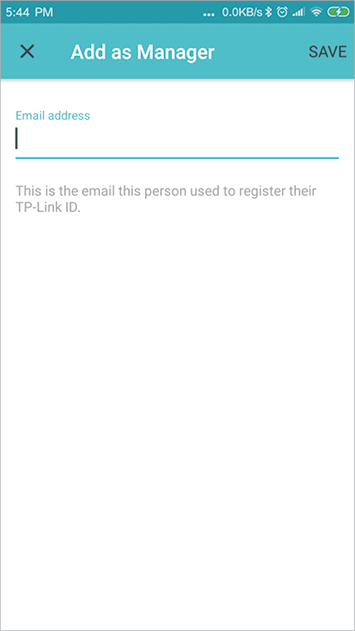

Add as manager

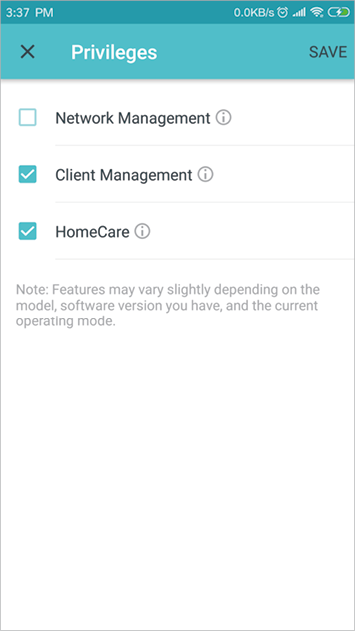

Set privileges for managers

Manage manager list
