RE450 V4 & RE550 V1 User Guide

About This Guide
Chapter 1 Get to Know About Your Extender
- Product Overview
- Appearance
Chapter 2 Set Up Internet Connection
- Power on the Extender
- Set Up the Extender
Chapter 3 OneMesh with Seamless Roaming
Chapter 4 TP-Link Cloud Service
Chapter 5 Customize Your Network
Chapter 6 More Features of Your Extender
- Use Your Extender as a Wireless Adapter
- Transform Your Existing Wired Network to a Wireless One
Chapter 7 Manage Your Extender
FAQ
Authentication

Chapter 1 Get to Know About Your Extender

This chapter introduces what the extender can do and its appearance.

It contains the following sections:

•Product Overview

•Appearance

1. Product Overview

Bring Dead Zones Back to Life

Tired of Wi-Fi “dead zones”? The TP-Link extender is connected to your router wirelessly, strengthening its signal and expanding its coverage into areas that could not otherwise be reached.

Easy Installation & Quick Position

The extender works with any standard wireless router. Instantly connect the extender to a router by pressing the router’s WPS button (if available) followed by the extender’s WPS button. Alternatively, follow the Quick Setup instructions on the extender’s web management page.

Once the extender is connected to a router, you can relocate it to your preferred location with no further configuration required. The intelligent signal light can help to find the best location.

Easy Management with the TP-Link Tether App

Tether provides a simple, intuitive way to access and manage your extender with your smart devices.

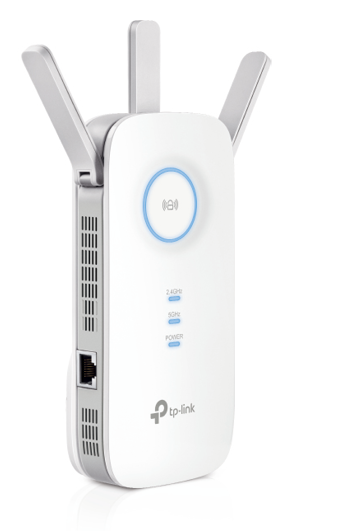

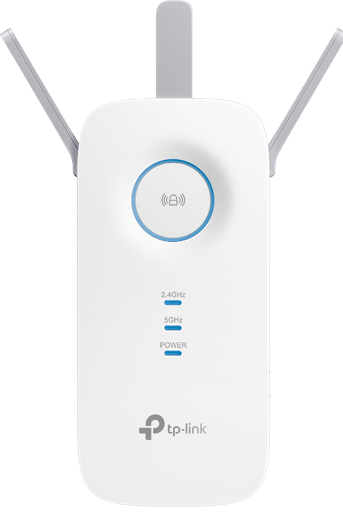

2. Appearance

2.1. LED Explanation

You can check the extender’s working status by following the LED Explanation table.

Name	Status	Indication
(Signal)	Solid blue	The extender is connected to your router’s wireless network and is in a suitable location.
	Solid red	The extender is experiencing poor signal strength. Try relocating it closer to your router.
	Blinking	WPS connection is in progress.
	Off	No wireless connection is established.
2.4GHz	On/Off	The extender is connected or not connected to the 2.4GHz wireless network of your host router.
5GHz	On/Off	The extender is connected or not connected to the 5GHz wireless network of your host router.
POWER	On/Off	The extender is on or off.
POWER	Blinking	The extender is starting up or firmware is being upgraded.

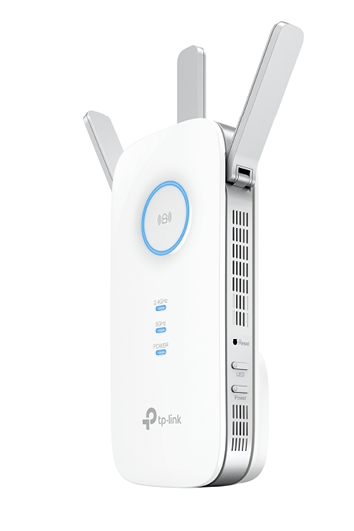

2.2. Port and Button Description

Ports or Buttons	Description
WPS Button	Press the WPS button on your host router, and immediately press the button on the extender for 1 second. The Signal LED of the extender should change to solid on, indicating successful WPS connection.
Power Button	Press for 1 second to turn on or off the extender.
LED Button	Press for 1 second to turn on or off all LEDs.
Reset (Hole)	Use a pin to press and hold for 1 second to reset the extender.
Ethernet Port	Connect your Ethernet-only device to the Ethernet port of the extender to join the network.
