Chapter 1 Get to Know About Your Access Point
This chapter introduces what the access point can do and shows its appearance.
It contains the following sections:
The TP-Link Wireless N Access Point, with multiple operation modes, is designed to establish or expand a scalable high-speed wireless N network or to connect an Ethernet enabled device such as a game console, digital media adapter, printer, or network attached storage device to a wireless network. The AP supports a host of different functions that make your wireless networking experience more fexible than ever before. Now, you can enjoy a better internet experience when downloading, gaming, video streaming or with any other application that you may wish to use.

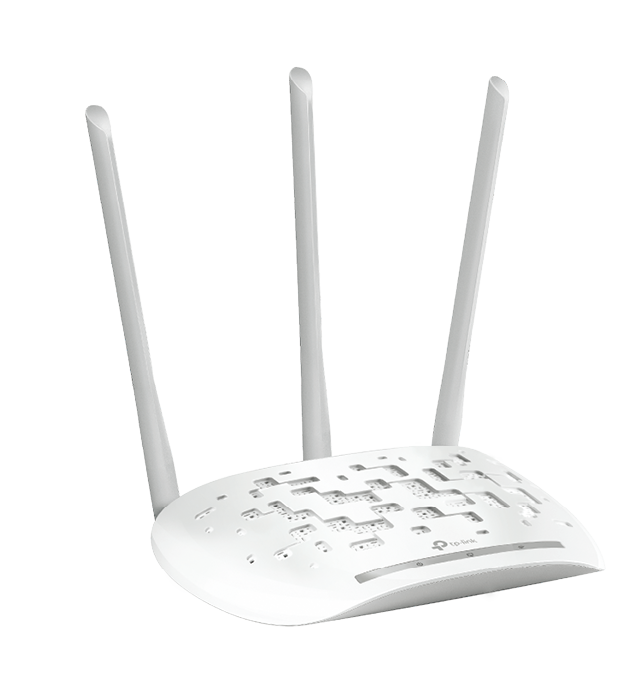

The access point’s LEDs (view from left to right) are located on the front panel. You can check the access point’s working status by following the LED Explanation table.
LED Explanation | ||
Name | Status | Indication |
(Power) | On | Power is on. |
Flashing | The system is starting up or the firmware is being upgraded. Do not disconnect or power off your access point. | |
Off | Power is off. | |
(Ethernet) | On | The ETHERNET port is connected to a powered-on device. |
Off | The ETHERNET port is not connected to a powered-on device. | |
(Wireless) | On | The wireless function is enabled. |
Off | The wireless function is disabled. |

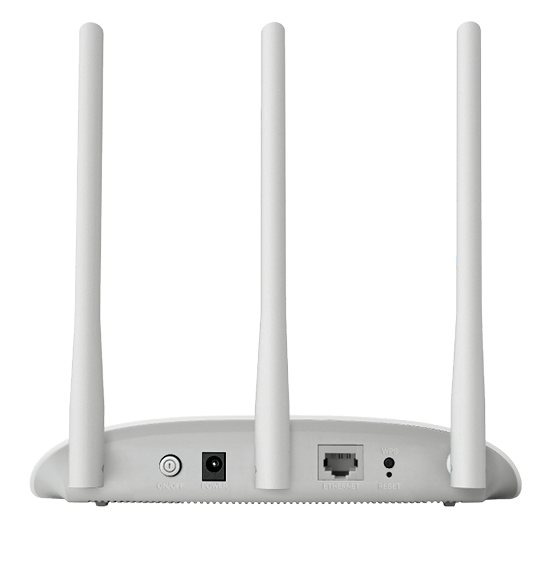

The following parts (view from left to right) are located on the rear panel.
Ports or Buttons | Description |
ON/OFF | To power on or off the access point. |
POWER | For connecting the access point to a power socket via the provided power adapter. |
ETHERNET | One LAN 10/100Mbps RJ45 port connects to a network device, such as a switch or a router. |
WPS | If your client devices, such as wireless adapters, support Wi-Fi Protected Setup, then you can press this button to quickly establish a connection between the access point and the client devices and automatically configure wireless security for your wireless network. |
RESET | Press and hold this button until all the LEDs turn on momentarily. |
Antennas | Used for wireless operation and data transmitting. Upright them for the best Wi-Fi performance. |
