Chapter 1 Get to Know About Your Router
This chapter introduces what the router can do and shows its appearance.
It contains the following sections:
The TP-Link router is designed to fully meet the need of Small Office/Home Office (SOHO) networks and users demanding higher networking performance. The powerful antennas ensure continuous Wi-Fi signal to all your devices while boosting widespread coverage throughout your home, and the built-in Ethernet ports supply high-speed connection to your wired devices.
Moreover, it is simple and convenient to set up and use the TP-Link router due to its intuitive web interface and the powerful Tether app.
The router’s LEDs are located on the front panel. You can check the router’s working status by following the LED Explanation table.
| LED | Status | Indication |
|
| Solid Orange | Router Mode: The WAN port is connected, but internet is not available. Access Point Mode: The WAN port is not connected. WISP Mode: Internet is not available. |
| Blinking Orange | The WAN port is not connected while in Router Mode. | |
| Solid Green | Router/WISP Mode: Internet is available. | |
| Blinking Green | The system is starting up or firmware is being upgraded. * To avoid device damage, do not disconnect or power off your router during the upgrade. | |
|
| Solid Green | At least one LAN port is connected. |
|
| Solid Green | Wireless function is enabled. |
| Blinking Green | WPS connection is in progress. This may take up to 2 minutes. |
(Internet)
(LAN)
(Wi-Fi)14.0-B.png)

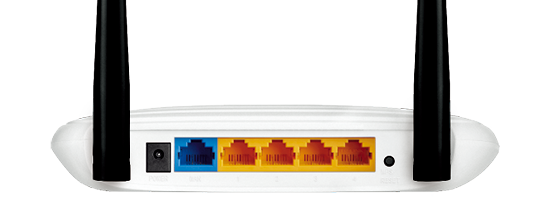

The following parts (view from left to right) are located on the rear panel.
| Item | Description |
| Power Port | For connecting the router to a power socket via the provided power adapter. |
| WAN Port | For connecting to a DSL/Cable modem, or an Ethernet port. |
| Ethernet Ports (1/2/3/4) | For connecting your PCs or other wired network devices to the router. |
| WPS/RESET Button | To enable the WPS function, press this button for 1 second. If you have a WPS-supported device, you can press this button to quickly establish connection between the router and the client device and automatically configure wireless security for your wireless network. |
| Press and hold this button for more than 5 seconds to reset the router to its factory default settings. | |
| Antennas | Used for wireless operation and data transmitting. Upright them for the best Wi-Fi performance. |
