TD-W9960 V1.2 User Guide

Chapter 6 IPTV

IPTV is the abbreviation of Internet Protocol Television. The service can only be delivered through the Internet, and our modem router provides a specific LAN port for IPTV.

By automatically separating IPTV from Internet surfing, you can enjoy a high quality of video streaming and fast browsing speeds at the same time.

I want to:

Configure the modem router to enable Internet Protocol Television (IPTV) Services.

For example, I already bought IPTV service, but this service can only be delivered through the Internet. Therefore, I need to configure my modem router first.

How can I do that?

1.Visit http://tplinkmodem.net, and log in with the account you set for the router.

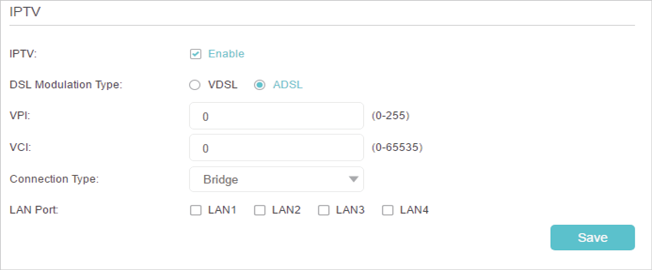

2.Go to Advanced > IPTV to open the configuration page.

3.Click Enable to enable this function.

4.Select your DSL modulation type.

5.Specify a LAN port for IPTV connection and connect the set-top box to this port.

6.If you select VDSL modulation type, check to enable VLAN and set the VLAN ID. If you select ADSL, fill in PVC parameters (VPI and VCI). VLAN ID and PVC parameters are all provided by your IPTV service provider.

7.Click Save to make the settings effective.

Done!

Modem router configuration is complete! You may still need to configure settings on your set-top box before enjoying your IPTV service.
