TD-W9960 V1.2 User Guide

Chapter 7 Guest Network

This function allows you to provide Wi-Fi access for guests without disclosing your main network. When you have guests in your house, apartment, or workplace, you can create a guest network for them. In addition, you can assign network authorities and bandwidth for guests to ensure network security, privacy, and fluency.

•Create a Network for Guests

•Customize Guest Network Options

1. Create a Network for Guests

1.Visit http://tplinkmodem.net, and log in with the account you set for the router.

2.Go to Advanced > Guest Network. Locate the Wireless Settings section.

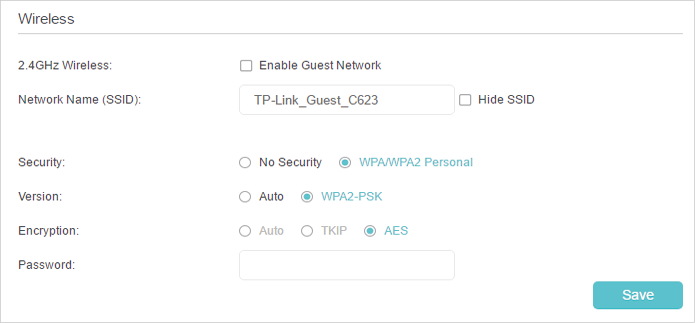

3.Create 2.4GHz guest network according to your needs.

1 )Check Enable Guest Network.

2 )Set an easy-to-identify SSID. Don‘t select Hide SSID unless you want your guests and other people to manually input this SSID for Wi-Fi access.

3 )Set Security to WPA/WPA2 Personal, keep the default Version and Encryption values, and set an easy-to-remember password.

4.Click Save. Now your guests can access your guest network using the SSID and password you set!

Tips:

To view guest network information, go to Advanced > Status and find the Guest Network section.

2. Customize Guest Network Options

1.Visit http://tplinkmodem.net, and log in with the account you set for the router.

2.Go to Advanced > Guest Network.

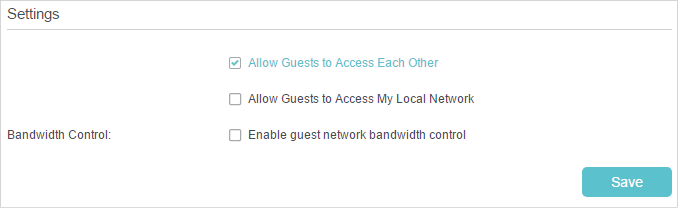

3.Assign network authorities and bandwidth according to your needs.

•Allow Guests to Access Each Other

Select this check box to allow the clients in your guest network to access each other’s files.

•Allow Guests to Access My Local Network

Select this check box to allow the clients in your guest network to access your local network, not just the internet.

•Enable guest network bandwidth control

Select this check box to specify the upstream and downstream bandwidth ranges for your guest network. To configure guest network bandwidth control, the bandwidth control function should be enabled first. Please go to Advanced > Bandwidth Control to enable it.

4.Click Save. Now users in your guest network can enjoy only the network authorities at the priority you assigned!

Tips:

To view guest network information, go to Advanced > Status and find the Guest Network section.
