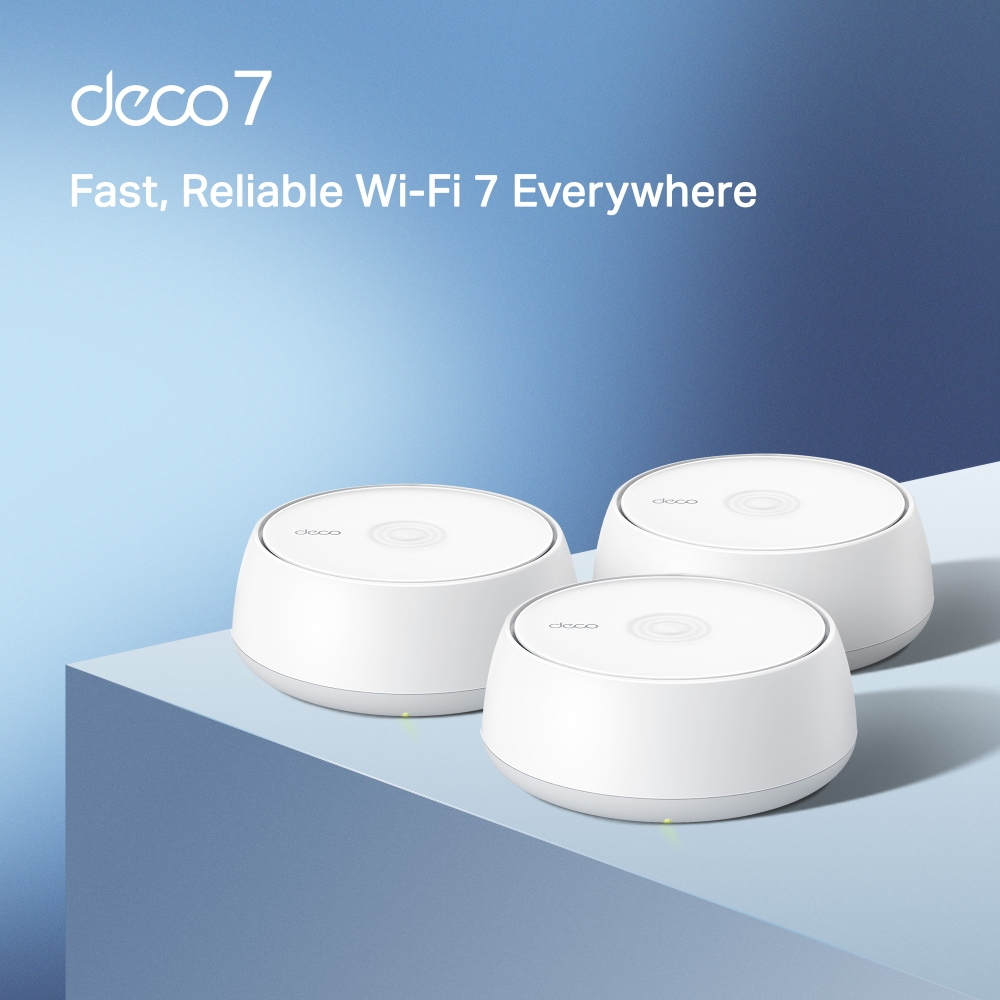

Deco BE5000

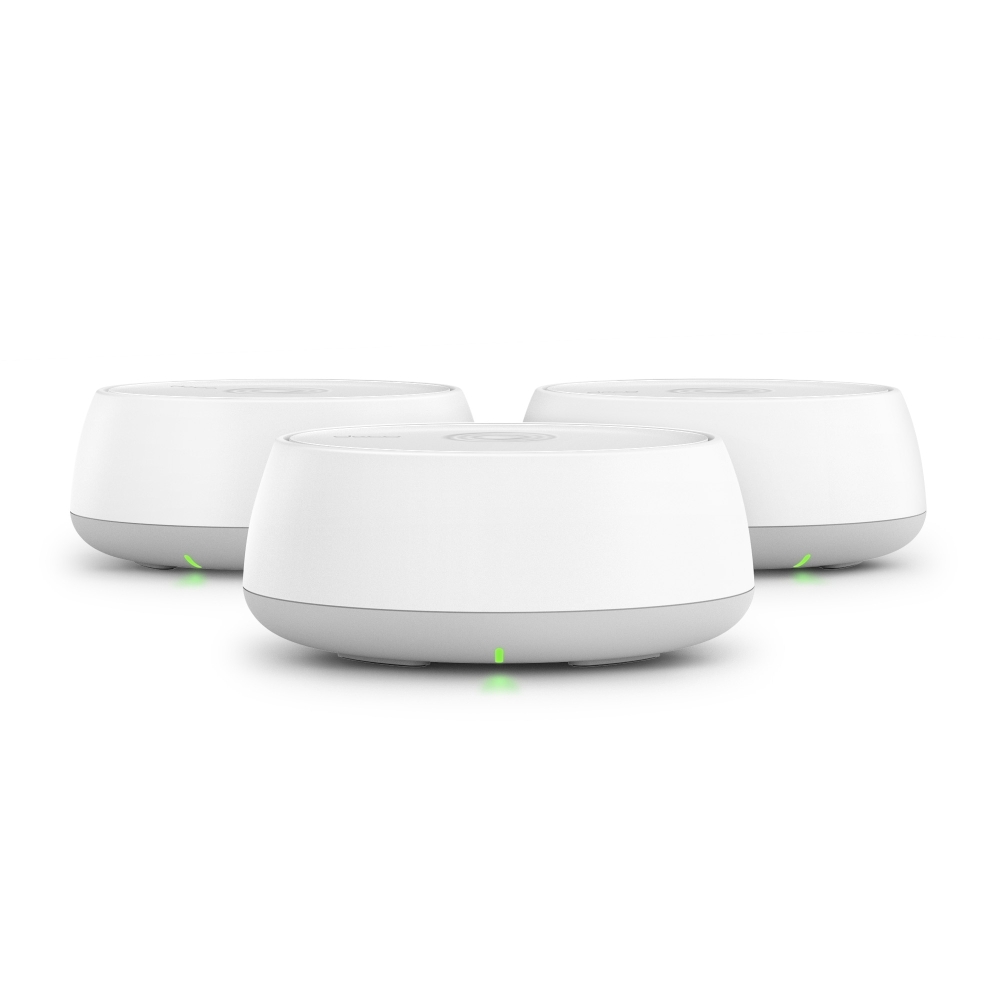

BE5000 Whole Home Mesh WiFi 7 System
- 5 Gbps Dual-Band WiFi – 4324 Mbps (5 GHz) + 688 Mbps (2.4 GHz).†
- 2.5 Gbps Wired Connections – 2× 2.5 Gbps ports ensure max flexibility and boosted throughput.§
- Wireless and Wired Combined Backhaul – Connects a wireless and wired backhaul with each unit simultaneously to improve overall throughput and reduce latency.
- Multi-Link Operation (MLO) – Simultaneously send and receive data across different bands and channels to increase throughput, reduce latency, and improve reliability.△
- Seamless AI-Driven Roaming – Forms a unified netwok with built-in AI-Roaming creating the ideal Wi-Fi solution for your home.
- TP-Link HomeShield – Provides comprehensive network protection, robust parental controls, and real-time IoT security.*
- Universal Compatibility – Backward compatible with all WiFi generations and works with any internet service provider (ISP) and modem.☆

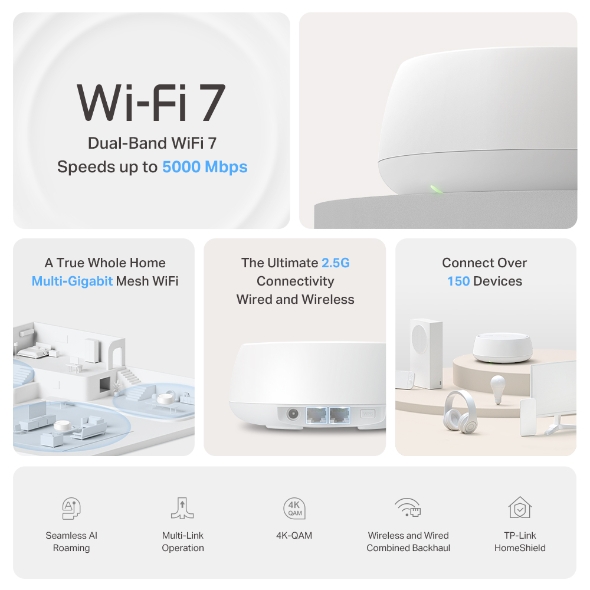

Dual-Band WiFi 7
Speeds up to 5000 Mbps
A True Whole Home
Multi-Gigabit Mesh WiFi
The Ultimate 2.5G
Connectivity
Wired and Wireless
Connect Over
150 Devices
Wireless and Wired Combined Backhaul
TP-Link HomeShield
Multi-Link Operation
4K-QAM
Seamless AI Roaming
WiFi 7, WiFi Like Never Before
WiFi 7 offers accelerated throughput, lower latency, stronger anti-jamming, and higher efficiency. Join the league of pros and experience the sheer performance of the next generation of WiFi.
Extremely High Throughput

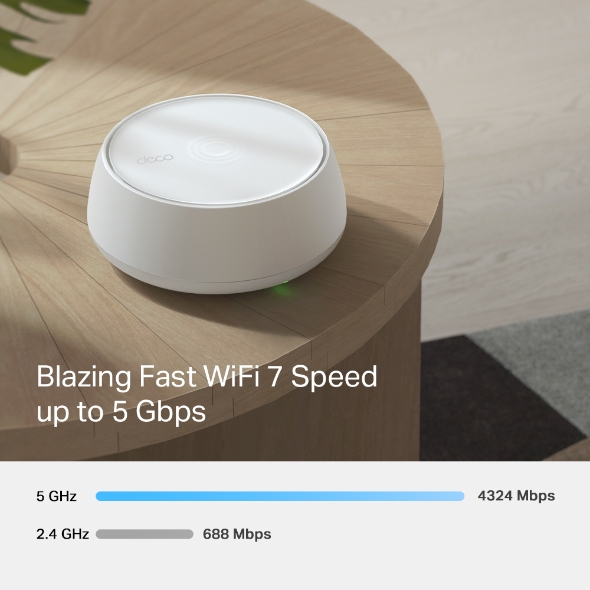

Blazing Fast WiFi 7 Speed up to 5 Gbps
The latest 4K-QAM boosts the Wi-Fi speeds up to 5 Gbps.† — ideal for bandwidth-intensive tasks like cloud gaming and 8K video. Families will enjoy immersive live-streaming with flawless video and clear audio without buffering.

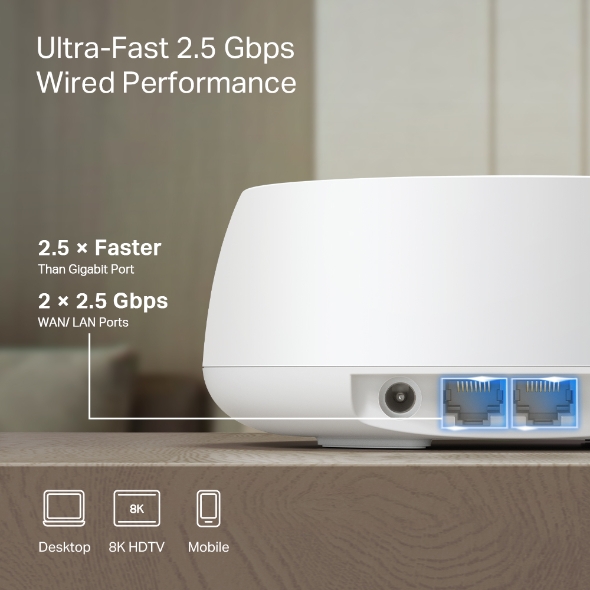

Ultra-Fast 2.5 Gbps
Wired Performance
Perfect for bandwidth-intensive tasks like cloud gaming, VR entertainment, and 8K video streaming. Enjoy immersive live-streaming with flawless video and clear audio, no buffering. Ideal for families and busy households.
than Gigabit Ports
WAN/ LAN Ports

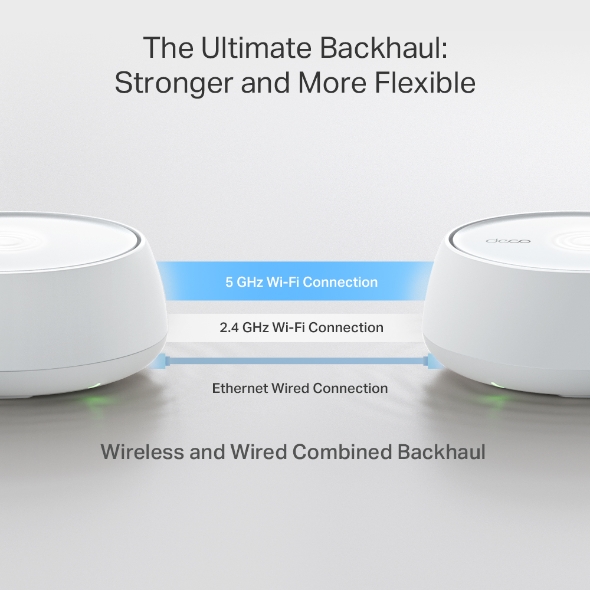

The Ultimate Backhaul: Stronger and More Flexible
Through our self-developed technology, Deco BE5000 is able to connect wireless and wired backhaul with each unit simultaneously. What’s more, with the latest WiFi 7 MLO technology, the system’s wireless and wired combined backhaul aggregation flow rate is increased. This way, it greatly improves overall throughput and reduces latency, delivering broader coverage with more stable and reliable connections.
![HomeShield](https://static-product.tp-link.com/deco-be5000_v1/img/tag-homeshield-3.png)
Smart Security for Smart Living
HomeShield is a built-in service, it provides a series of services for you to protect all your devices comprehensively with various features at home or on-the-go. With HomeShield, safer internet experiences bring more happiness to your smart living.
KidShield App
Devices Security App
-
Simply configure your gateway and achieve whole home network security. HomeShield examines your network by scanning and identifying potential risks, stopping them in their tracks before they harm your network.*
-
Parental Controls protect your kids, while helping them maintain healthy digital habits. Parents can set app blocking, web filtering, YouTube restrictions, SafeSearch, and online time limits to keep kids safe while they’re having fun online.*
-
KidShield App
Devices Security App
Devices remain secure everywhere with devices security app. And through KidShield, parents can monitor their kids› locations . This way, kids stay digitally protected even on the go.*
VPN Clients and Server Supported
Allow devices in your home network to access remote VPN servers without needing to install VPN software on every device. You can create different VPN connection types, including OpenVPN, PPTP, L2TP/IPSec VPN. Besides, Deco can run both the VPN and ordinary internet connections at the same time, delivering security and flexibility.
Private IoT Network for More Security
Set up a separate WiFi for IoT devices and overlay HomeShield and advanced WPA3 encryption** to better protect the security of your home network and IoT devices.

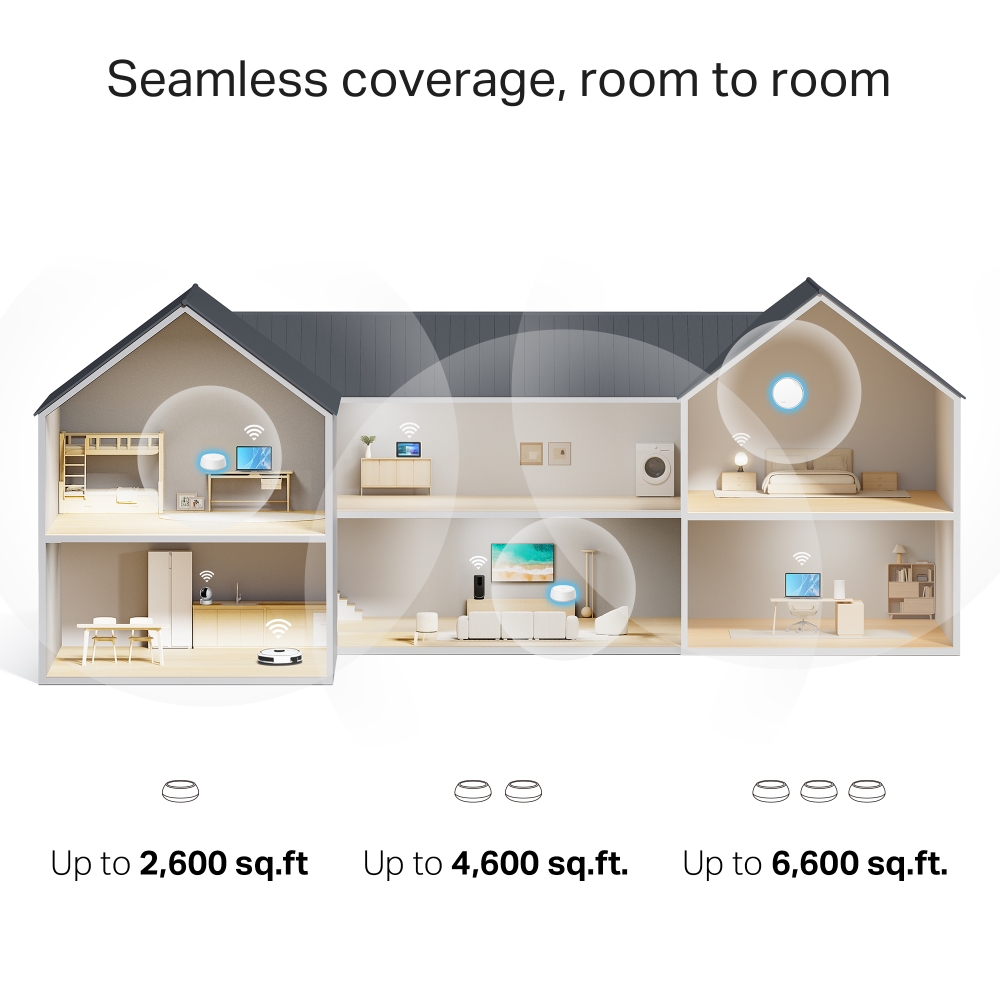

Seamless AI-Driven Mesh
Uninterrupted Streaming when Moving Between Rooms
Deco Mesh forms a unified network with a single network name. With built-in AI-Roaming technology, it creates the ideal WiFi solution with its advanced algorithms and self-learning. Walk through your home and enjoy seamless streaming at the fastest possible speeds.‡
-
Seamless Roaming with One WiFi Name
-
Sophisticated Algorithms
-
Seamless AI-Driven Mesh
-
Customized WiFi
-
Deco BE5000
Mesh Wi-Fi SystemWi-FiWhole-Home Deco Wi-Fi -

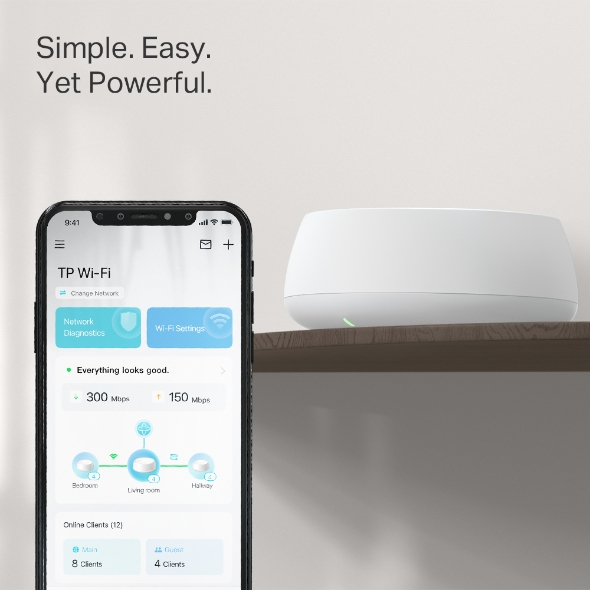

Simple. Easy. Yet Powerful.
Setup and manage your network anytime and anywhere on the friendly TP-Link Deco app. In just three easy steps your entire home can be blanketed in strong and reliable WiFi.
-
1 CONNECT
to a modem and power on both. -
2 DOWNLOAD
and launch the Deco app. -
3 CONFIGURE
by following the in-app instructions.
Easy Management
Manage your WiFi at home or away on the Deco app. See every connected device, prioritize your own, and set up a guest network.
Voice Control
Use an Amazon Alexa or Google Assistant-enabled device to control Deco BE5000 with just your voice.
All Decos Work Together
Deco BE5000 is compatible with every other Deco model to form a Mesh network. Expand Mesh WiFi coverage anytime by adding more Decos.
WIRELESS | |
---|---|
Standards | Wi-Fi 7IEEE 802.11be/ax/ac/n/a 5 GHzIEEE 802.11be/ax/n/b/g 2.4 GHz |
WiFi Speeds | BE50005 GHz: 4324 Mbps (802.11be)2.4 GHz: 688 Mbps (802.11be) |
WiFi Range | Broader Whole Home Coverage TP-Link Mesh TechnologyOptional Ethernet backhaul work together to link Deco units to provide seamless coverageAI-Driven MeshIntelligently learns the network environment to provide ideal Wi-Fi unique to your home4× High-Performance Antennas (Internal)Multiple antennas form a signal-boosting array to cover more directions and large areas |
WiFi Capacity | Very High Dual-BandDistribute devices to different bands for optimal performanceOFDMASimultaneously communicates with multiple WiFi 7 clients4 StreamsMore than enough bandwidth for connected devices |
Working Modes | Router ModeAccess Point Mode |
Advanced Functions | • Multi-Link Operation (MLO)• 240 MHz Channel• 4K-QAM• Multi-RUs• Works with Alexa and Google Assistant |
SECURITY | |
---|---|
Network Security | SPI FirewallAccess ControlHomeShield Security Real-Time IoT ProtectionMalicious Site BlockerIntrusion Prevention SystemDDoS Attack PreventionHome Network Scanner |
Guest Network | 1× 5 GHz Guest Network1× 2.4 GHz Guest Network Effective TimeBandwidth Control |
VPN Server | • OpenVPN Server• PPTP VPN Server• L2TP/IPSec VPN Server |
VPN Client | • OpenVPN Client• PPTP VPN Client• L2TP/IPSec VPN Client |
WiFi Encryption | WPA-Personal WPA2-Personal WPA3-Personal |
HARDWARE | |
---|---|

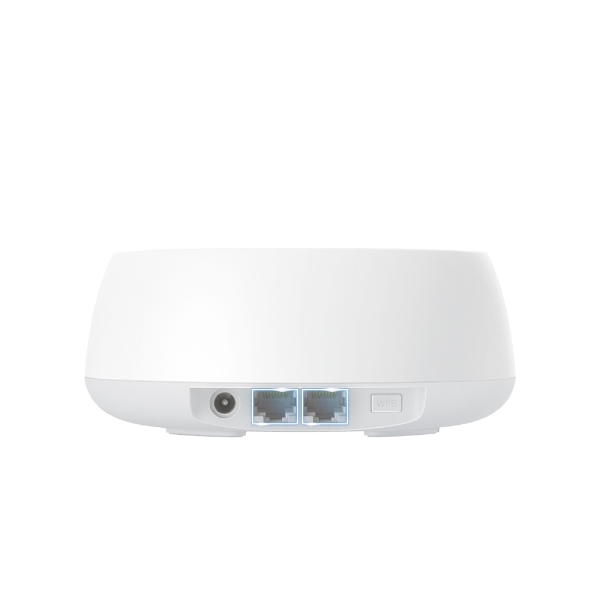

Ethernet Ports | • 2× 2.5 Gbps*Per Deco Unit Supports WAN/LAN auto-sensing |
Buttons | 1× Reset Button1× WPS |
SOFTWARE | |
---|---|
Advanced Features | • Reboot Schedule• Tapo/Kasa Onboarding• IoT network & Device Isolation• Static Routing Function• Node/Band Connection Preference |
Protocols | IPv4 IPv6 |
Service Kits | HomeShieldLearn More> |
Parental Controls | HomeShield Parental Controls Youtube RestrictionSafeSearchCustom ProfilesProfessional Content Filter LibraryFamily TimeBedtimeOff TimeTime RewardsFamily Online Time RankingPause the InternetWeekly and Monthly Reports |
WAN Types | Dynamic IPStatic IPPPPoEPPTPL2TP |
Quality of Service | HomeShield QoS QoS by Device |
Cloud Service | OTA Firmware UpgradeTP-Link ID DDNS |
NAT Forwarding | Port Forwarding UPnP |
IPTV | IGMP ProxyIGMP SnoopingBridge Tag VLAN |
DHCP | Address ReservationDHCP Client ListServer |
DDNS | TP-Link |
Management | Deco App |
PHYSICAL | |
---|---|
Dimensions (W×D×H) | 5.91 × 5.91 × 2.44 in (150 × 150 × 62 mm) |
Package Contents | Deco BE5000 (3-pack)3 Deco BE5000 units1 RJ45 Ethernet cable3 Power adaptersQuick Installation Guide |
OTHERS | |
---|---|
Certifications | CE, FCC, RoHS |
Environment | Operating Temperature: 0°C~40°C (32 °F~104 °F)Storage Temperature: -40°C~60°C (-40 °F~140 °F)Operating Humidity: 10%~90% RHStorage Humidity: 5%~90% RH |
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Connection to over 150 devices is based on laboratory test data, which analyzed the connections of different devices on the 5 GHz, and 2.4 GHz bands simultaneously. These devices simulated a typical home scenario by running simultaneous applications in the same room that included 4K video, 1080p video, 720p video, file downloading, web browsing, IP cameras, and other IoT devices. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of internet service provider factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
△Use of Wi-Fi 7 (802.11be), Wi-Fi 6 (802.11ax), and features including Multi-Link Operation (MLO), 4K-QAM, Multi-RUs, OFDMA, MU-MIMO and BSS Color requires clients to also support the corresponding features.
§2.5 Gbps internet speeds require compatible service plans and equipment. All WAN/LAN ports will operate as either WAN or LAN ports. Only one port can serve as a WAN port at a time.
*HomeShield includes both basic and advanced features. Advanced features require a paid subscription. For details, visit tp-link.com/homeshield. Some features are under development and will be supported with subsequent software updates.
☆WiFi generations represent the wireless standard IEEE 802.11 a/b/g/n/ac/ax/be. Users may require an extra modem device that is compatible with their internet service provider to gain internet access.
Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, internet service provider factors, and other environmental conditions.
This Deco may not support all the mandatory features as ratified in IEEE 802.11be specification.
Further software upgrades for feature availability may be required.
