Deco X76 Plus

AX5400 Smart Home Mesh Wi-Fi 6E System

AX5400 Tri-Band WiFi: Boosts overall speeds up to an incredible 5400 Mbps
AI-Driven Mesh: Intelligently learns the network environment to provide ideal WiFi unique to your home
Works on the 6 GHz Band: A newly-opened frequency brings more bandwidth and faster speeds
Built-in Smart Hub: Acts as a smart hub, bringing all your products together in one easy-to-use app
Connect More Devices: Connect over 150 devices without dragging down performance
Boosted Seamless Coverage: Achieve seamless whole home coverage with a clearer and stronger whole home WiFi signal generated by WiFi 6
TP-Link HomeShield: Keeps your home network safe with cutting-edge features for network and IoT protection
Setup Made Easier Than Ever: The Deco app walks you through setup step-by-step

Overview

Superior Mesh WiFi, Everywhere

AX5400 Whole Home Smart Mesh WiFi 6E System

Deco X76 Plus

5400 Mbps
Tri-Band Speed
Covers up to
7200 ft2 (3-pack)
Connect over
150 Devices
Built-in
Smart Hub
3× Gigabit
Ports
HomeShield
Security

Upgrade Your WiFi to 6E

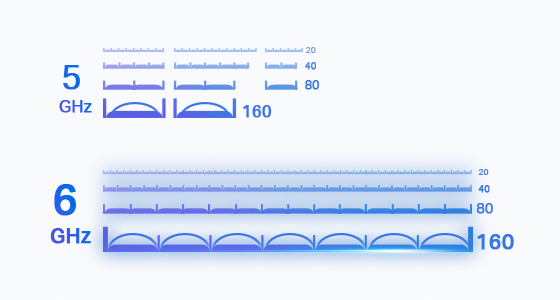

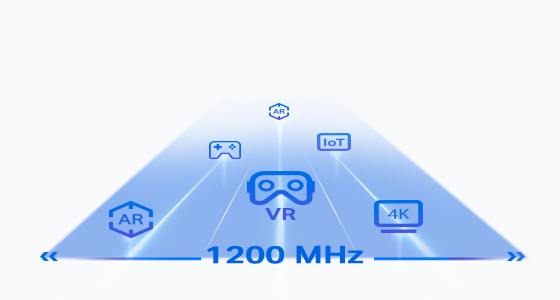

WiFi 6E means WiFi 6 extended to the 6 GHz band, a newly-opened frequency that brings more bandwidth, faster speeds, and lower latency. Deco X76 Plus armed with the latest WiFi 6E technology upgrades your home WiFi to the next level.

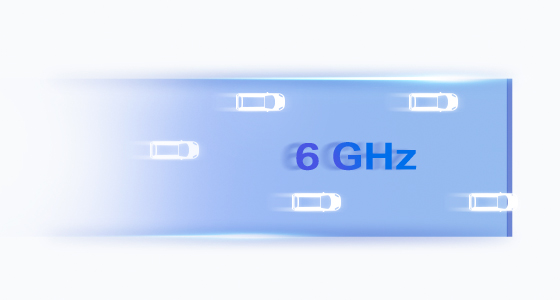

Minimized Congestion
More Throughput
Improved Capacity

Stronger Backhaul, 6 GHz Band

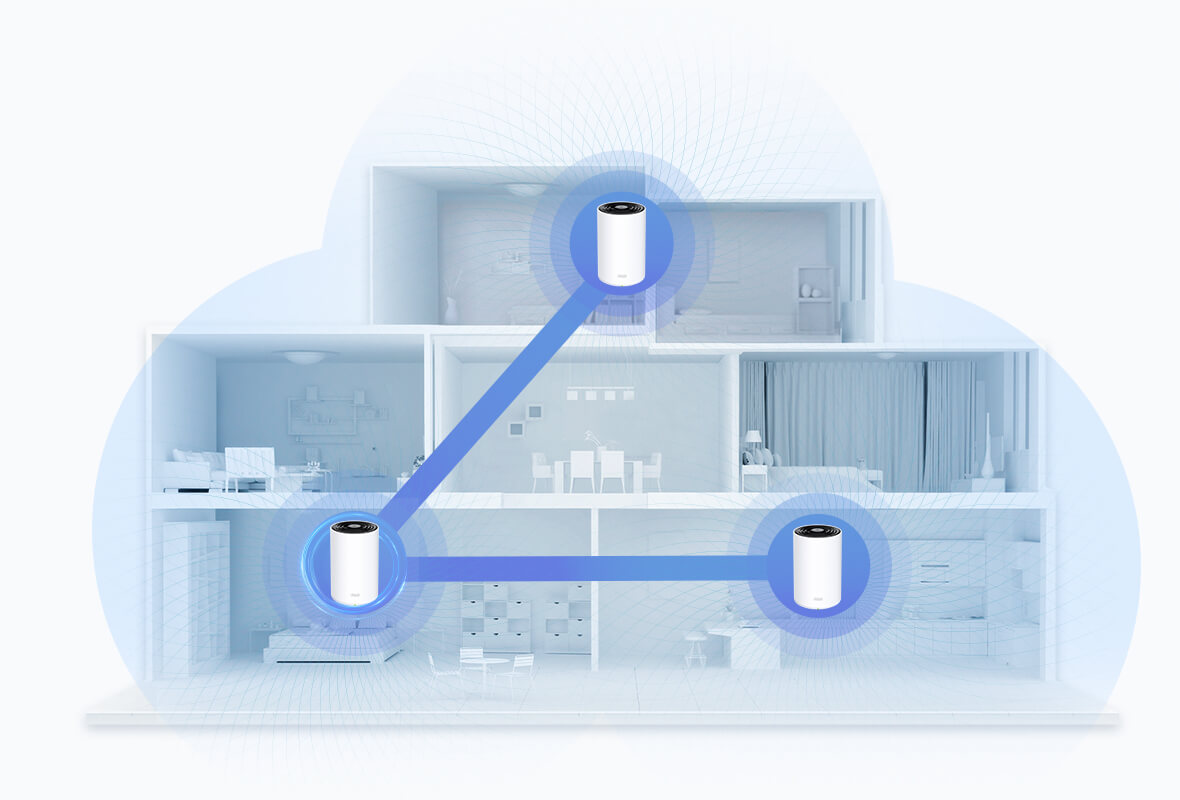

Advanced Mesh WiFi, Covers Everywhere

Eliminate weak signal areas with the tri-band mesh WiFi. Deco X76 plus provides a clear 6 GHz band, a newly-opened frequency, working as a stronger backhaul between Deco units. This creates seamless WiFi coverage throughout your home.

up to 7,200 ft² 4 – 7 Bedroom Houses

up to 5,500 ft² 3 – 5 Bedroom Houses

A Smart Hub for Your Home IoT

Deco X76 Plus acts also as a smart home hub, bringing all your smart devices together in one easy-to-use app, Deco. Set interactions between Zigbee, and WiFi devices. With Deco X76 Plus, enjoy the magic of smart home in every room.

Real-Time Protection for Your IoT

The hub built-in Deco X76 Plus is also equipped with TP-Link HomeShield security kit, designed for IoT protection. It identifies IoT devices in your home and immediately begins monitoring their security performance once they join the network. With a firewall, Deco X76 Plus blocks unauthorized access, encrypts your data, and protects against cyber threats and attacks.

Specifications

WIRELESS
Standards	Wi-Fi 6E IEEE 802.11ax 6 GHz IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz ZigBee HA 1.2
WiFi Speeds	AX5400 6 GHz: 2402 Mbps (802.11ax) 5 GHz: 2402 Mbps (802.11ax, HT160) 2.4 GHz: 574 Mbps (802.11ax)
WiFi Range	4-7+ Bedroom Houses (3-pack) TP-Link Mesh Technology Optional Ethernet backhaul work together to link Deco units to provide seamless coverage AI-Driven Mesh Intelligently learns the network environment to provide ideal Wi-Fi unique to your home 4× High-Gain Antennas (Internal) Multiple antennas form a signal-boosting array to cover more directions and large areas Tri-Band Provides an extra 5 GHz band working exclusively as the strong backhaul, strengthening the WiFi coverage Beamforming Concentrates wireless signal strength towards clients to expand WiFi range
WiFi Capacity	Very High Tri-Band Distribute devices to different bands for optimal performance 4×4 MU-MIMO Silmultaneously communicates with multiple MU-MIMO clients OFDMA Silmultaneously communicates with multiple WiFi 6 clients 8 Streams More than enough bandwidth for connected devices
Working Modes	Router Mode Access Point Mode

HARDWARE
Processor	1.5 GHz Quad-Core CPU
Ethernet Ports	3× Gigabit Ports *Per Deco Unit Supports WAN/LAN auto-sensing
Buttons	Reset Button
Power	12 V ⎓ 2.5 A

SECURITY
WiFi Encryption	WPA WPA2 WPA3
Network Security	SPI Firewall Access Control HomeShield Security Real-Time IoT Protection Malicious Site Blocker Intrusion Prevention System DDoS Attack Prevention Home Network Scanner
Guest Network	1× 5 GHz Guest Network 1× 2.4 GHz Guest Network

SOFTWARE
Protocols	IPv4 IPv6
Service Kits	HomeShield Learn More> Smart Hub Compatible Smart Product>
Parental Controls	HomeShield Parental Controls Custom Profiles Professional Content Filter Library Family Time Bedtime Off Time Time Rewards Family Online Time Ranking Pause the Internet Weekly and Monthly Reports
WAN Types	Dynamic IP Static IP PPPoE PPTP L2TP
Quality of Service	HomeShield QoS QoS by Device
Cloud Service	OTA Firmware Upgrade TP-Link ID DDNS
NAT Forwarding	Port Forwarding Port Triggering DMZ UPnP
IPTV	IGMP Proxy IGMP Snooping Bridge Tag VLAN
DHCP	Address Reservation DHCP Client List Server
DDNS	TP-Link
Management	Deco App

PHYSICAL
Dimensions (W×D×H)	8.3 × 5.1 × 4.8 in (110 × 110 × 114 mm)
Package Contents	Deco X76 Plus (3-pack) 3 Deco X76 Plus units 1 RJ45 Ethernet Cable 3 Power Adapters 1 Quick Installation Guide Deco X76 Plus (2-pack) 2 Deco X76 Plus units 1 RJ45 Ethernet Cable 2 Power Adapters 1 Quick Installation Guide Deco X76 Plus (1-pack) 1 Deco X76 Plus unit 1 RJ45 Ethernet Cable 1 Power Adapter 1 Quick Installation Guide

OTHERS
System Requirements	Android 4.4 or later iOS 9.0 or later
Certifications	CE, EAC, FCC, IC, RoHS, RCM
Environment	Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing

TEST DATA
WiFi Transmission Power	CE: <20d Bm(2.4 GHz) <30 dBm(5 GHz) FCC: <30 dBm (2.4 GHz) <30 dBm(5 GHz)

For additional version information, please go to the support page.
