TL-SG605
5-Port 10/100/1000Mbps Desktop Switch
- 5× 10/100/1000 Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
- Plug and play, no configuration needed
- Supports 802.1p/DSCP QoS and IGMP Snooping functions

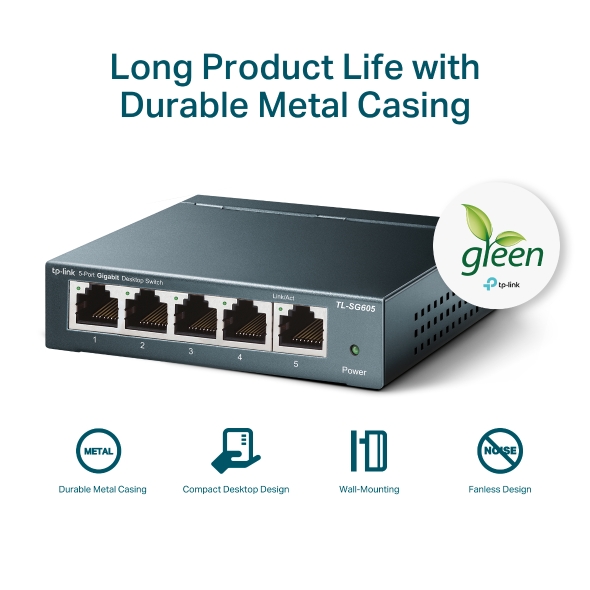

- Durable metal casing, desktop/wall-mounting options, and a fanless design
- IEEE 802.3x flow control provides reliable data transfer
- Green Ethernet technology reduces power consumption
Plug and Play,
Expand Your Gigabit Network
5-Port Gigabit Desktop Switch
TL-SG605
Conveniently Conduct Business
The TL-SG605 Desktop Switch provides an easy way to increase the speed of your network server and backbone connections. Whether you are at home or in the office, the TL-SG605 helps you deal with your business quickly and easily, any time.
-
Office Network
-
Home Network

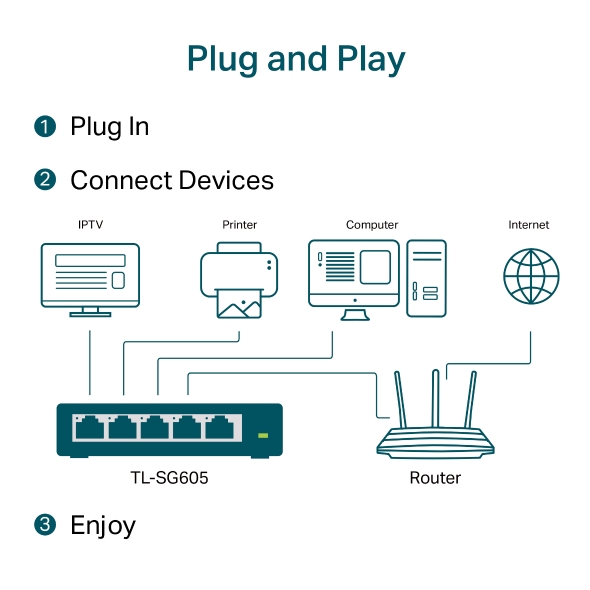

Plug and Play, No Configuration Required
A plug-and-play design makes for easy deployment, no technician needed. Auto-negotiation on each port senses the link speed of a network device and intelligently adjusts to ensure full compatibility and optimal performance.
-
1. Connect to Power
-
2. Connect The Devices
IPTV Printer Computer Internet -
3. Enjoy

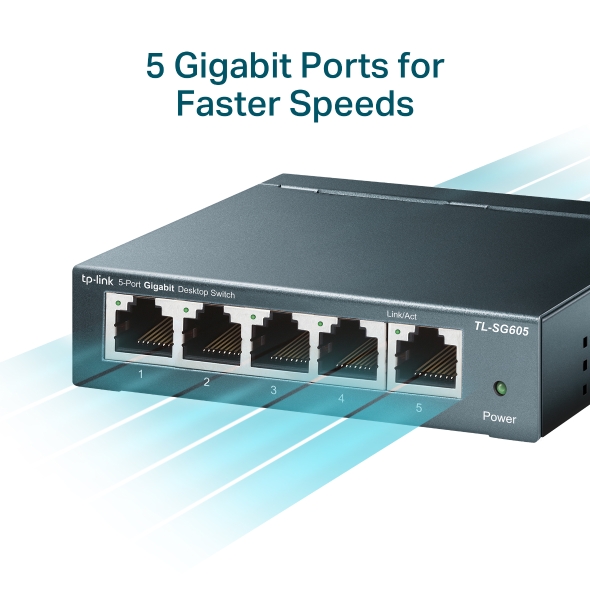

Five Gigabit Ports for Faster Speeds
Increase the speed of your network with the TL-SG605 5-port Gigabit desktop switch. 5 non-blocking 10/100/1000 Mbps ports enable instant transferring of large, bandwidth intensive files without interference.

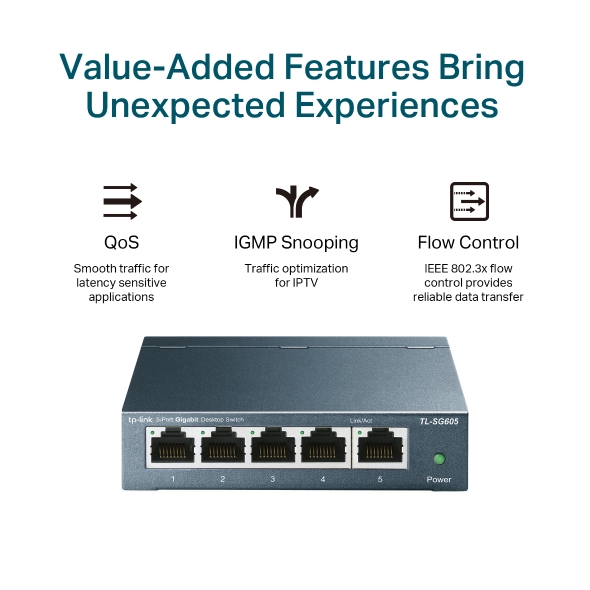

Value-Added Features Bring Unexpected Experiences
-
QoS for a Lag-Free Experience
Ensures smooth traffic for latency sensitive applications, such as voice and video
-
IGMP Snooping for Multicast Optimization
Ensures a better network experience, especially for applications like IPTV, by optimizing multimedia traffic delivery.
Go Green with Your Ethernet
TP-Link’s latest generation of Unmanaged Switches make use of innovative energy-saving technologies. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint.
conservation
| HARDWARE FEATURES | |
|---|---|
| Standards and Protocols | IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p |
| Interface | 5× 10/100/1000 Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports |
| Fan Quantity | Fanless |
| External Power Supply | External Power Adapter (Output: 5 V DC / 0.6A) |
| LED Indicator | System PowerLink/Act indicators per port built into each RJ-45 port |
| Dimensions ( W x D x H ) | 3.9 x 3.9 x 1.0 in (100 x 98 x 25 mm) |
| Max Power Consumption | 2.3 W (220 V/ 50 Hz) |
| Max Heat Dissipation | 7.83 BTU/h |
| PERFORMANCE | |
|---|---|
| Packet Forwarding Rate | 7.4 Mpps |
| MAC Address Table | 2K |
| Packet Buffer Memory | 1 Mb |
| Jumbo Frame | 16 KB |
| SOFTWARE FEATURES | |
|---|---|
| Advanced Features | Green Technology802.3X Flow Control802.1P/DSCP QoS (for V2 and later version)IGMP Snooping |
| Transfer Method | Store and Forward |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | 5-Port 10/100/1000Mbps Desktop Switch Power Adapter Installation Guide |
| Environment | Operating Temperature: 0–40 °C (32–104 °F)Storage Temperature: -40–70 °C (-40–158 °F)Operating Humidity: 10–90% RH non-condensingStorage Humidity: 5–90% RH non-condensing |
