Deco W2400

AC1200 Whole Home Mesh WiFi System

  • Whole Home Coverage: Deco W2400 (2-pack) uses a system of units to achieve seamless whole-home WiFi coverage up to 3,000 ft2— if that's not enough, simply add more Deco units to the network to increase coverage at any time.*
  • TP-Link Mesh Technology: With advanced Deco Mesh Technology, units work together to form a unified network with a single network name. Devices automatically switch between Decos as you move through your home for the fastest possible speeds.***
  • Fast Dual-Band WiFi: Deco W2400 provides fast and stable dual-band WiFi up to 1167 Mbps combined.*
  • Connect More Devices: Deco can handle traffic from even the busiest of networks, providing lag-free connections for up to 100 devices.*
  • Parental Controls: Limit online time and block inappropriate websites according to unique profiles created for each family member.
  • Easy Setup: Setup is easier than ever with the Deco app there to walk you through every step.

Fast. Stable. Everywhere.

Whole Home Mesh Wi-Fi System
AC1200 Dual-Band Wi-Fi

Deco W2400



Wi-Fi Dead-Zone Killer

Deco W2400 is the simplest way to guarantee a strong Wi-Fi signal in every corner of your home up to 3000 Square feet(2-pack).* Wireless connections and optional Ethernet backhaul work together to link Deco units, providing even faster network speeds and truly seamless coverage.Want more coverage? Simply add another Deco.

Ranch-Style Home
Multi-Story Home
L-Shaped Home
2.4 GHz wireless connection 5 GHz wireless connection Optional Ethernet backhaul

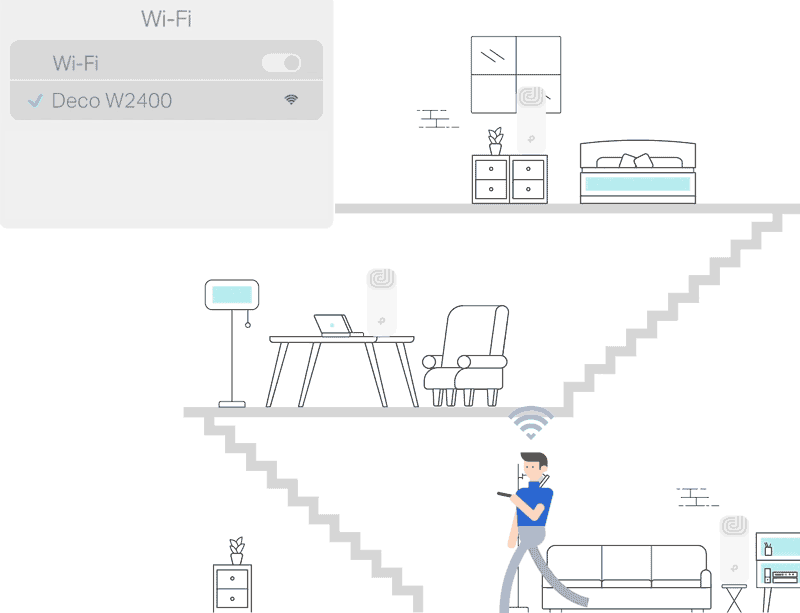

Seamless Roaming with One Wi-Fi Name

TP-Link Mesh means Deco units work together to form one unified network. Your phone or tablet automatically connects to the fastest Deco as you move through your home, creating a truly seamless Wi-Fi experience.***

mesh
nomesh

No More Buffering

Network speeds three times faster than previous generation routers, thanks to 802.11ac wireless technology, make Deco capable of providing a lag-free connection to up to 100 devices.*

5 GHz   867 Mbps
2.4 GHz   300 Mbps
Single-application connections for up to 100 devices
High-speed Downloading
1
IP Camera Streaming
x8
720P Streaming
x30
Web Browsing
x10
Smart Home Devices
x22
1080P Streaming
x7
4K Streaming
x2
Testing of multiple applications conducted by TP-Link in December 2018.

Multiple 3-in-1 Router, Access Point and Range Extender Modes

Flexible and multifunctional, the Deco W2400 includes a variety of features allowing it to serve as a router, access point or range extender. Just choose the mode for your actual network demands and experience the maximum wireless flexibility.

  •


    Router (Default)

    Instantly generate a private
    wireless network.

  •


    Access Point

    Create Wi-Fi access for any
    existing wired network.

  •


    Range Extender*

    Extend Wi-Fi range to
    eliminate dead zones.

*Range Extender mode requires to update the firmware to the latest version, which will be released soon.


Robust Parental Controls

Simple, intuitive parental controls make it easy to
keep your children safe while they’re online.

  • Easily create a profile for each family member and set custom time limits and online time allowances.

  • Keep your family safe online with one-touch security settings that block websites based on age-appropriateness.

  • Set limits on how much time each person in your family can spend online.

  • Check out which sites your children visit and how much time they spend on each to ensure your children are safe while they’re having fun online.

  • Take a break from Wi-Fi for dinner and family game nights. Just tap a button to suspend internet access for everyone in your home.







All Decos Can Work Together

Deco W2400 is compatible with every other Deco model to form a Mesh network. Expand Mesh Wi-Fi coverage anytime by simply adding more Decos.

Deco M5
Deco M9 Plus
Deco W2400
Deco M3W
Deco M9 Plus
Deco P7
Deco W2400
Deco W2400
Deco M3W
Deco M3W

Wi-Fi Made Easy

  •

    App-Based Setup

    Installing Deco W2400 is fast and easy. Just unpack the system, download the Deco app and follow its onscreen directions.

    Learn how to set up the Deco system >>
  •

    Easy Management

    Manage your Wi-Fi at home or away in the Deco app, including seeing the connected devices, prioritizing your devices, setting up a guest network and more.

  •

    Voice Control

    Pair with Alexa to control Deco W2400 with simple voice commands. Enjoy the convenient life.


WIRELESS
Standards Wi-Fi 5
IEEE 802.11ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz
WiFi Speeds AC1200
5 GHz: 867 Mbps (802.11ac)
2.4 GHz: 300 Mbps (802.11n)
WiFi Range 3-5 Bedroom Houses (3-pack)
TP-Link Mesh Technology
Optional Ethernet backhaul work together to link Deco units to provide seamless coverage

2× Antennas (Internal)
Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
WiFi Capacity Medium
Dual-Band
Distribute devices to different bands for optimal performance

MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients
Working Modes Router Mode
Access Point Mode
SECURITY
Network Security SPI Firewall
Access Control
Guest Network 1× 5 GHz Guest Network
1× 2.4 GHz Guest Network
WiFi Encryption WPA-Personal
WPA2-Personal
HARDWARE
Ethernet Ports 2× 10/100 Mbps Ports

*Per Deco Unit
Supports WAN/LAN auto-sensing
Buttons Reset Button
SOFTWARE
Protocols IPv4
IPv6
Parental Controls URL Filtering
Time Controls
WAN Types Dynamic IP
Static IP
PPPoE
PPTP
L2TP
Quality of Service QoS by Device
Cloud Service OTA Firmware Upgrade
TP-Link ID
DDNS
NAT Forwarding Port Forwarding
UPnP
IPTV IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCP Address Reservation
DHCP Client List
Server
DDNS TP-Link
Management Deco App
TEST DATA
WiFi Transmission Power CE:
<20 dBm (2.4 GHz)
<23 dBm (5 GHz)
FCC:
<30 dBm
PHYSICAL
Dimensions (W×D×H) 3.6 × 3.6 × 7.5 in
(90.7 × 90.7 × 190 mm)
Package Contents Deco W2400 (2-pack)
2 Deco W2400 Units
1 RJ45 Ethernet Cable
2 Power Adapters

Deco W2400 (1-pack)
1 Deco W2400 Unit
1 RJ45 Ethernet Cable
1 Power Adapter
OTHERS
System Requirements Android 5.0 or later
iOS 9.0 or later
*Note: The minimum system requirements will be updated alongside updates to the app, subject to official website information.
Certifications CE, FCC, IC, NCC, BSMI, IDA, RCM, JPA, JRF, VCCI, KC, RoHS
Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

*Maximum wireless transmission rates are the physical rates derived from IEEE Standard 802.11 specifications. Range and coverage specifications along with the number of connected devices were defined according to test results under normal usage conditions. Actual wireless transmission rate, wireless coverage, and the number of connected devices are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead and 3) client limitations, including rated performance, location, connection quality, and client condition.

Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.



***Seamless roaming/No-Drop Wi-Fi refers to the Wi-Fi roaming that supports IEEE 802.11 k/v/r protocol, helping connected devices search and shift from one AP to another within 0.3 second. Clients need to support 802.11 k/v/r and may require additional setup. Performance may vary depending on the client device.
