What is PIN Code when I connect my Windows 7 to wireless router?
If your wireless router or access point has the QSS (Quick Security Setup) or called WPS (Wi-Fi Protected Setup) function and your computer with Windows 7 connects to the new unsecured wireless network first time, a small window will pop out.
If the wireless network you want to connect to is secured, please type in the wirless password directly.
![](https://static.tp-link.com/resources/UploadFiles/Images/image001az.jpg)
![](https://static.tp-link.com/resources/UploadFiles/Images/image002az.jpg)
There are two methods to connect to your wireless network:
Method 1 Click Connect to the network without setting it up, then you will connect to the unsecured network.
![](https://static.tp-link.com/resources/UploadFiles/Images/image003az.jpg)
Method 2 Click OK button, then it will pop out PIN Code window.
Step 1

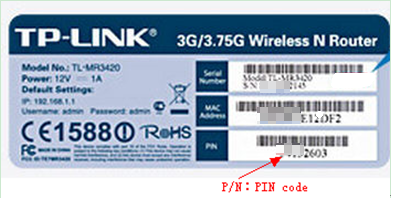

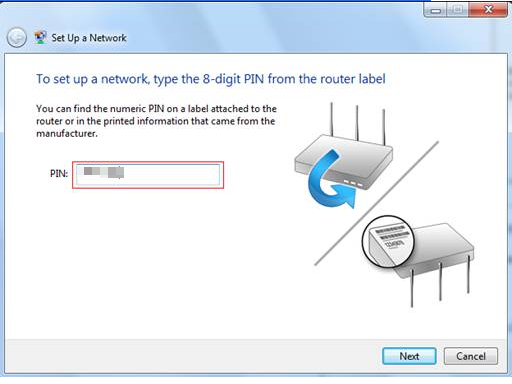

Type in 8-digit PIN code, you can find it on the label at the bottom of the device.
![](https://static.tp-link.com/resources/UploadFiles/Images/image004az.png)
![](https://static.tp-link.com/resources/UploadFiles/Images/image006az.jpg)
![](https://static.tp-link.com/resources/UploadFiles/Images/image007az.jpg)
Step 2
Click Next, Type in your network name
![](https://static.tp-link.com/resources/UploadFiles/Images/image008az.jpg)
Step 3
Click Next, the router will set a WPA2-Personal password for your wireless network automatically. You need remember the password. It is the key of your wireless network.
![](https://static.tp-link.com/resources/UploadFiles/Images/image009az.jpg)
Step 4
Click Close. Then you have connected to the wireless network successfully.
